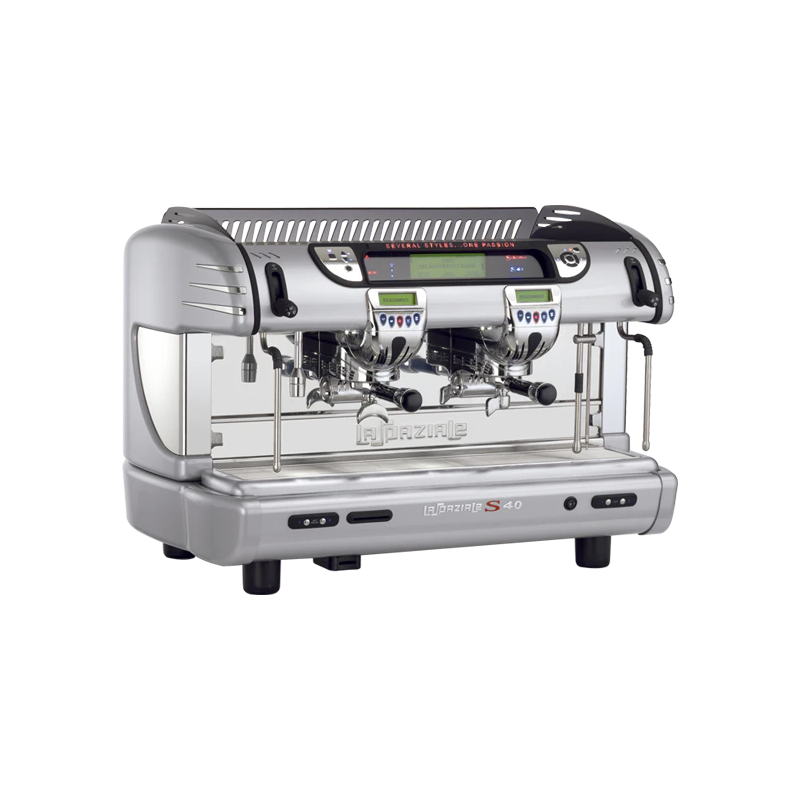

2 Group
LxWxH = 845/560/600
Weight = 85KG
Boiler capacity = 10 Litre
Power supply and power absorption =
V = 400/220/240
Hz = 50/60
W = 3200/4600
W+ = (Elettrik) 4100

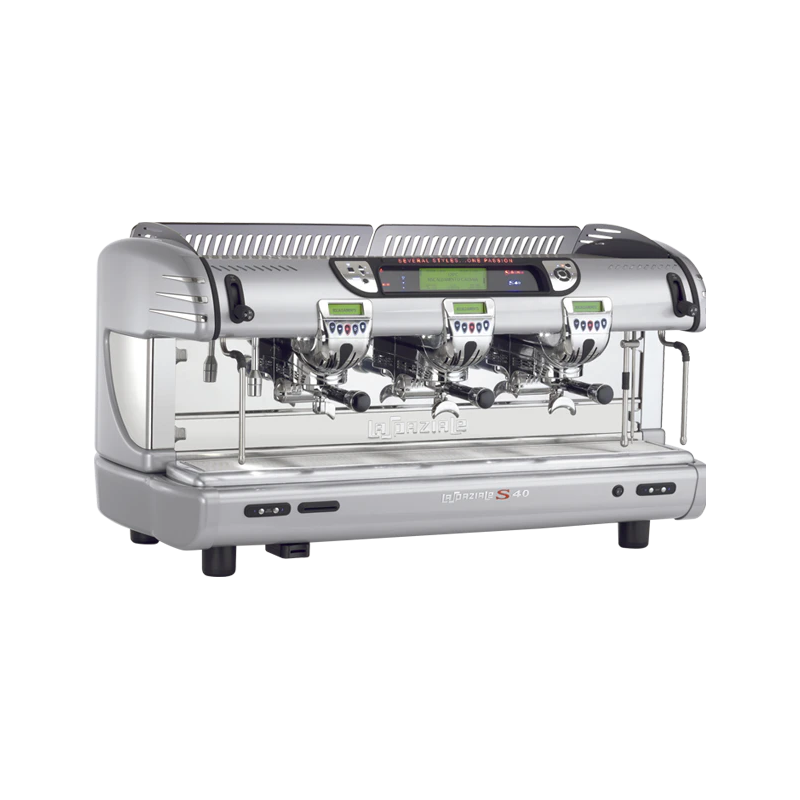

3 Group
LxWxH = 1078/560/600mm
Weight = 100KG
Boiler capacity = 15 Litre
Power supply and power absorption =
V = 400/220/240
Hz = 50/60
W = 4200/6200
W+ = 6500
Electronic boiler temperature control
Controlled thermal differential 0.5oC
Digital pressure sensor for boiler
Digital pressure sensor for water mains
Digital pressure sensor for pump
Built in volumetric pump
Electronic visualization and control of water level in the boiler
Automatic disconnection system from electricity and water mains in case of emergency
ECONOMY function
Manual and automatic BOOST function
Self-compensation of the boiler operating temperature according to the external ambient temperature (control of the equipment dissipation level)
EGS function (Electronic Ground System)
Electronic temperature regulation for the cup warmer tray with 5 programmable cup temperature sets
Grinding degree control with signal of coarse or fine grinding
Signal for too fine grinding
Timer for equipment automatic switch on-off
ITC function of latest generation
Delivery groups and boiler washing cycle
Exclusive access to the programming through Service Card protected by a PIN code
Back up and restore system of all the equipment parameters on the Service Card
Chronologic record of all the technical service operations. per Date and Time
1 hot water outlet for infusions with 2 programmable selections (1 with adjustable temperature)
Control of the intervals for the scheduled maintenance program, with customer warning
Control of cartridge filters replacement, with customer warning
Chronological record of the access to programming, with the possibility to assign a personalized Id to each technician
Backlit graphic main display
Display on each delivery group indicating coffee delivery time in progress
software update through Secure Digital (SD) memory card
Customer card for menu access fort he final user
Groups lighting
